description:
detail:

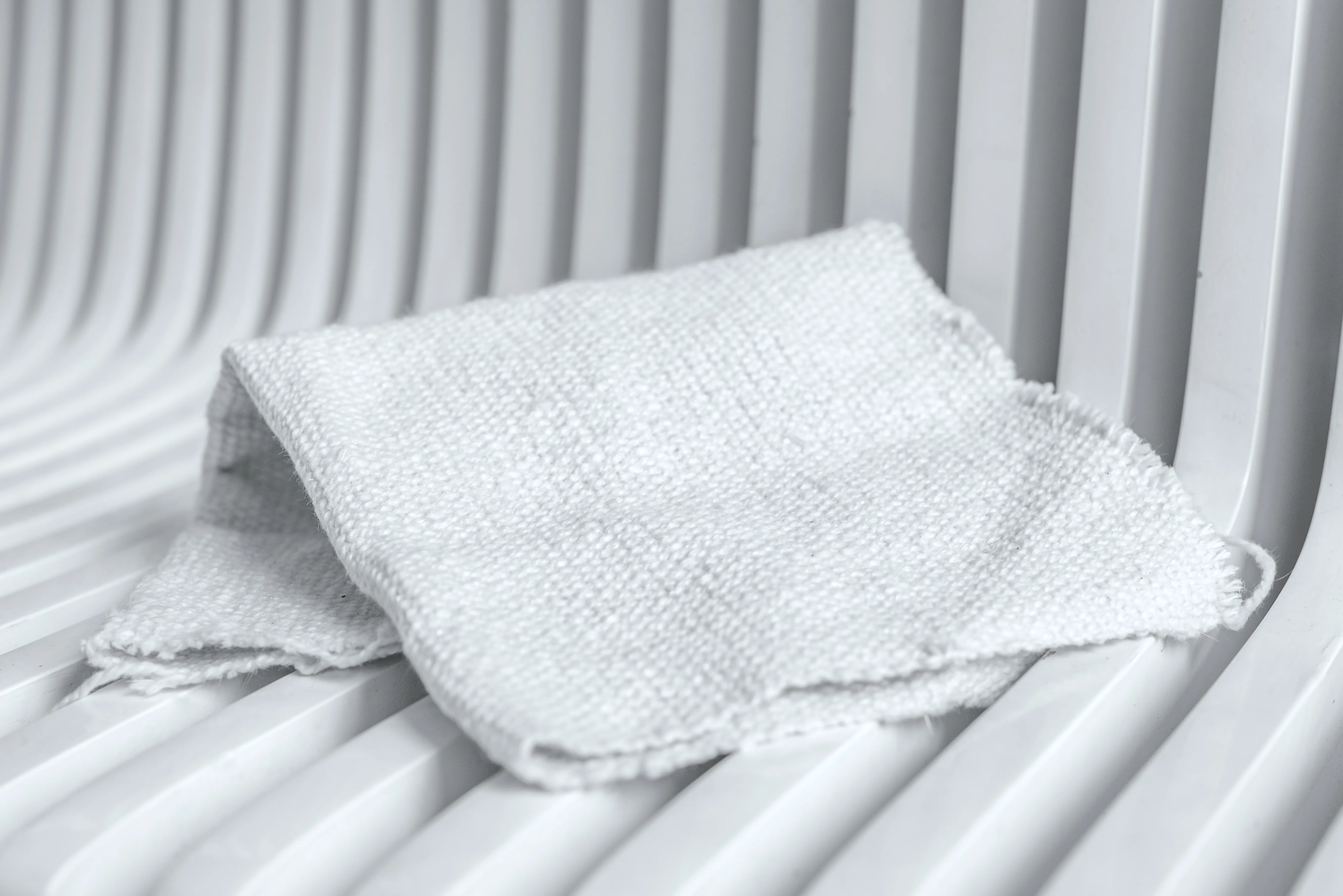

Ceramic Fiber Textile is a woven fabric that is manufactured from high purity alumina-silicate based ceramic fiber, reinforced with fiberglass filament and optional alloy steel wire. It is designed to meet the toughest thermal, mechanical and electrical performance requirements.The product is white and odorless, suitable for high temperature applications up to 2300°F. When used in industrial furnaces, it can serve as thermal barriers to separate different temperature zones or the fabrics can serve to prevent particulate shedding. Feature: 1.Low thermal conductivity 2.Fire and flame proof 3.High temperature stable 4.Lightweight, woven texture with excellent handling strength 5.Excellent thermal shock resistance 6.Excellent thermal stability
Technical Indicators
| Project/Product Name | Physical and Chemical Properties |
|---|---|
| Use Temp | 1260°C |
| Optional Reinforcement Material 1 | Stainless Steel1 1000°C |
| Optional Reinforcement Material2 | Glass Fiber 650°C |
| Thermal Shrinkage Rate | 3% at 1000°C |
| Conductivity | Stainless Steel Conductive |
| Conductivity 2 | Glass Fiber Non-conductive |
| Thermal Conductivity | 538°C 8pcf |
application:
- Annealing furnaces
- Furnace door linings and seals
- Soaking pit covers and seals
- Furnace hot face repairs
- Reheating furnace and ladle covers
